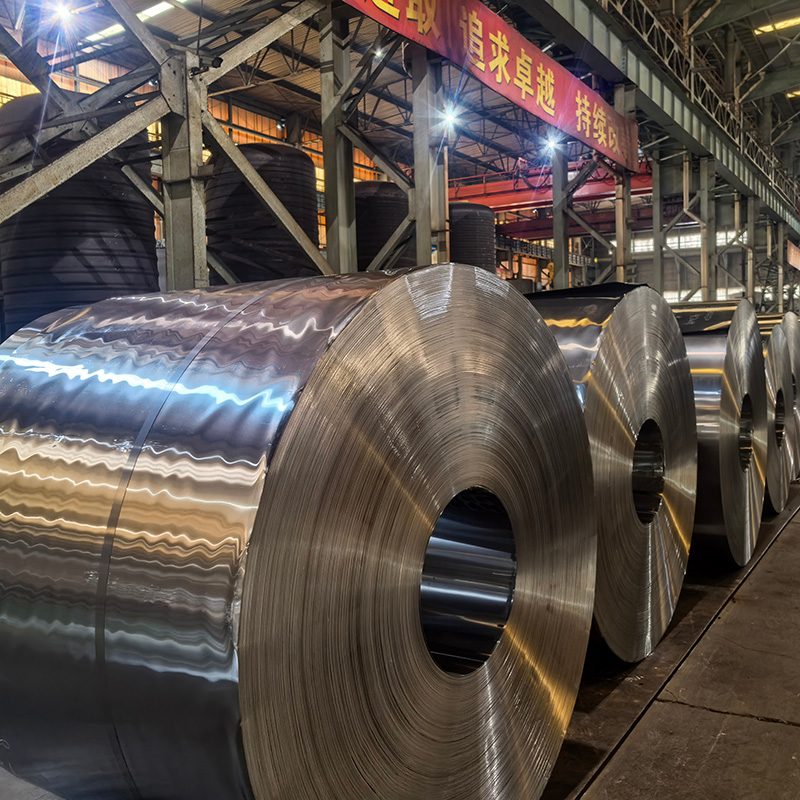

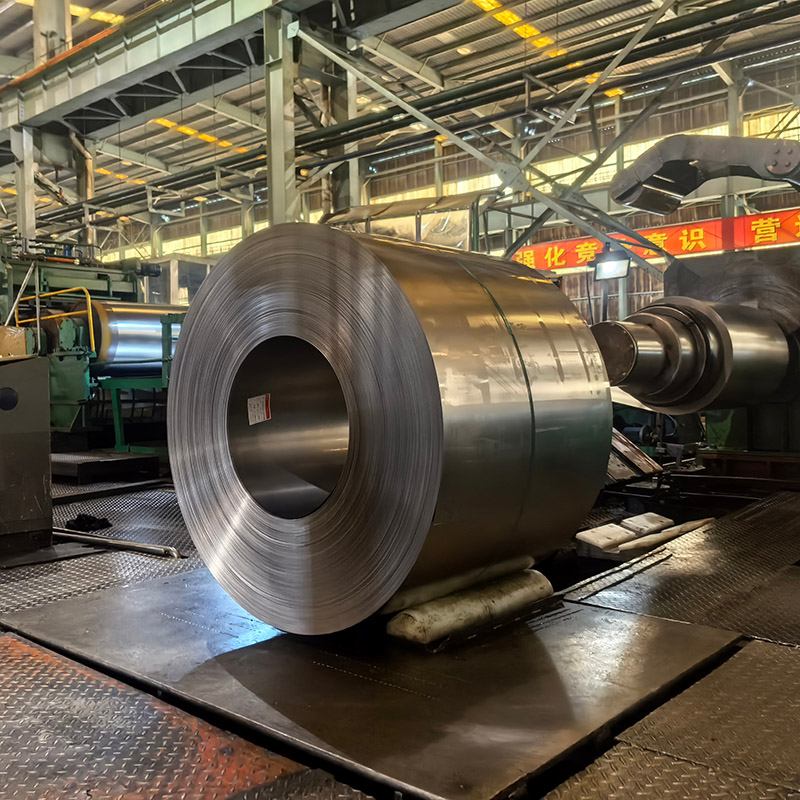

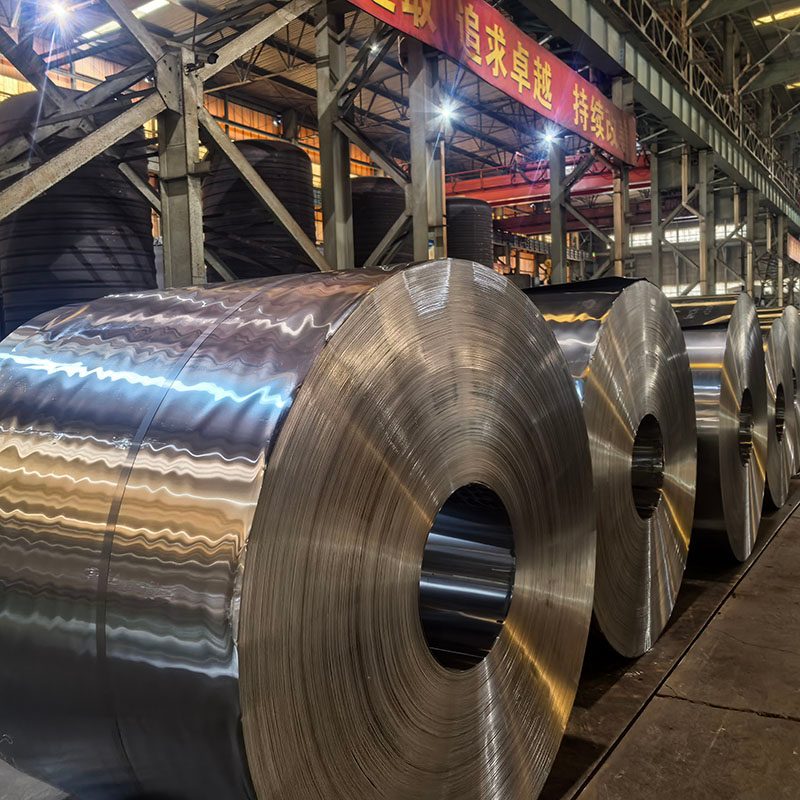

Nature Steel’s DC05 Steel Coil is a high-grade interstitial-free (IF) cold-rolled steel specifically engineered for ultra-deep drawing and complex forming applications. With an exceptionally low carbon content (C≤0.008%) and precise Ti+Nb stabilization, this material offers superior ductility and an outstanding strain hardening exponent (n-value ≥0.21). Its high r-value (up to 1.9) ensures excellent deep-drawability and uniform thickness distribution, making it the ideal choice for manufacturing intricate components without the risk of cracking or surface defects.
Available in a thickness range of 0.3mm to 2.0mm and widths up to 1500mm, Nature Steel’s DC05 Steel Coils feature a high-precision thickness tolerance of ±0.02mm and premium FC/FB surface finishes. These coils are delivered with professional anti-rust oiling or protective filming, ensuring a 6-month corrosion-free shelf life. Widely utilized in the automotive, appliance, and precision engineering industries, our DC05 steel is perfect for producing car body panels, complex shells, and structural parts that demand the highest standards of surface smoothness and mechanical stability.
| Element | DC05 Steel Coil |
| C (Carbon) | ≤0.008 |
| Mn (Manganese) | ≤0.30 |
| P (Phosphorus) | ≤0.020 |
| S (Sulfur) | ≤0.020 |
| Al (Aluminum) | ≥0.015 |
| Ti+Nb (Titanium + Niobium) | Appropriate Amount |
| Performance Indicators | Typical Range | Remarks |
| Yield Strength ReL | 120–180 MPa | The lower the value, the easier the forming |
| Tensile Strength Rm | 270–350 MPa | Stable range |
| Elongation after Fracture A80 | ≥38% | Thickness ≥0.5mm |
| r Value (L Direction) | ≥1.6 | High-end batches ≥1.9 |
| n Value | ≥0.21 | Strain hardening exponent |
| Parameters | Range | Description |
| Thickness | 0.3–2.0 mm | Mainstream: 0.6–1.2 mm |
| Width | 800–1500 mm | Can be slit to 20mm |
| Thickness Tolerance | ±0.02 mm | High precision |
| Surface Grade | FC (Fine Surface) / FB | No scratches, no scale |
| Surface Treatment | Bright Surface / Oiled / Film Coated | Oiled type for 6-month anti-rust |

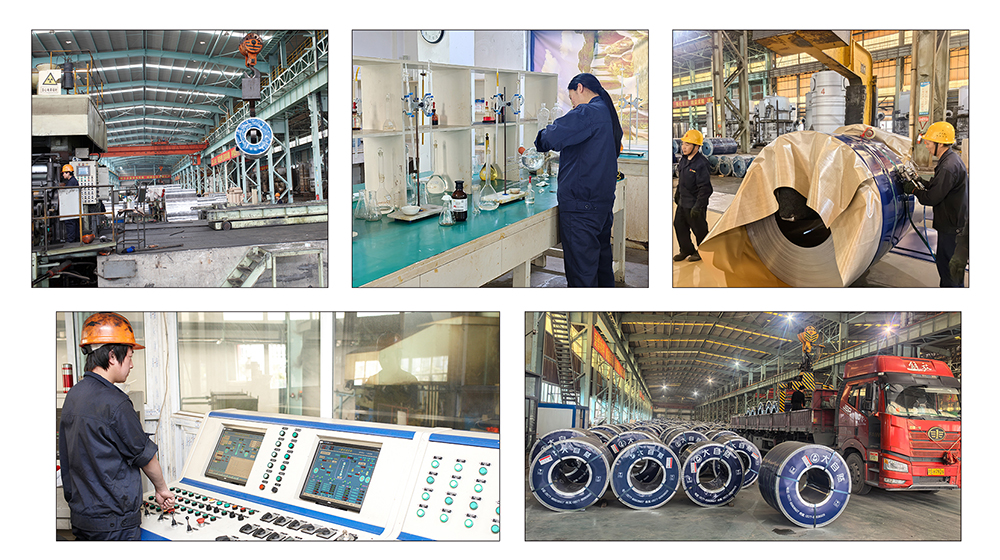

1. Standardized Production Base with Ample Capacity: The factory covers 80,000 square meters with an annual production capacity of 500,000 tons (150,000 tons for DC05). Sufficient stock of standard specifications is available. The production workshop is fully enclosed, dust-free, and automated, with clearly defined zones to ensure batch consistency.
2. Internationally Advanced Production Equipment Guarantees Ultra-Deep Drawing Performance: Equipped with a full set of imported core equipment, ensuring the ultra-deep drawing performance and precision of DC05 Steel Coil: German cold rolling mill (tolerance ±0.02mm), controlled atmosphere annealing furnace (soft-state delivery), high-precision leveling machine (FC-grade surface), and fully automatic slitting and leveling equipment, adaptable to customer processing needs.
3. Comprehensive Testing System for Full Quality Control: A professional testing laboratory is established, implementing full-process testing from raw materials to finished products. Through spectral analysis, tensile testing, and other methods, chemical composition, mechanical properties, surface and dimensional accuracy are precisely controlled, preventing unqualified products from leaving the factory.
Each batch is equipped with an MTC material certificate and test report, with traceable parameters. Third-party testing is supported, making procurement more worry-free.
4. Professional team support, worry-free service throughout the process. We have a professional R&D, technical and after-sales team that can customize specifications, provide stamping process guidance and trial stamping services, and respond to after-sales issues within 24 hours, so you can have a worry-free experience throughout the process.
