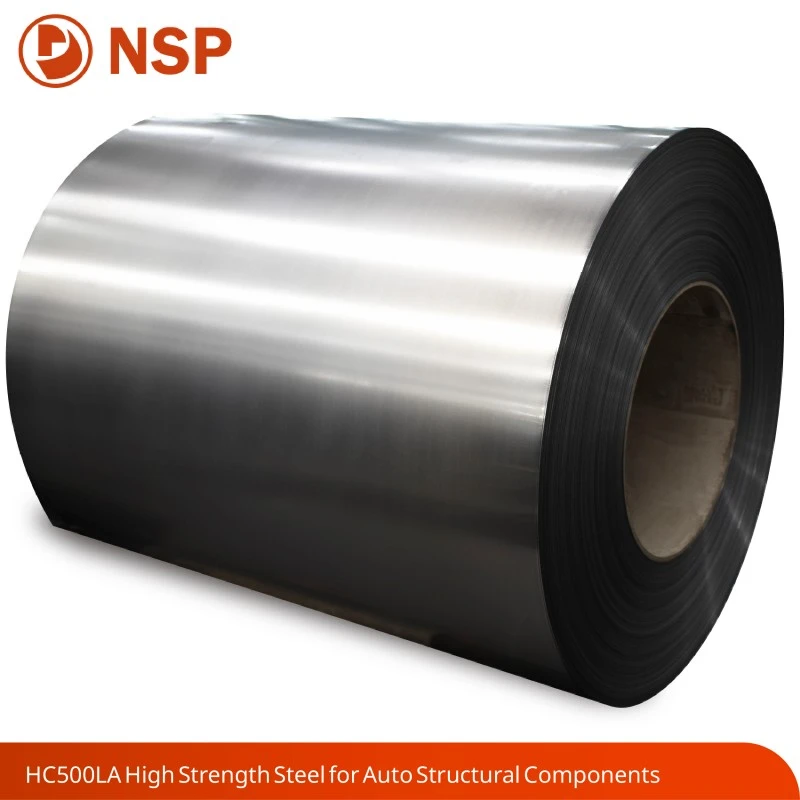

HC500LA High Strength Steel for Auto Structural Components

We strictly follow international standards for smelting and rolling to ensure material stability under complex stamping conditions.

Chemical Composition (%)

Carbon (C): ≤0.14 (low carbon equivalent ensuring excellent weldability)
Manganese (Mn): ≤1.80
Silicon (Si): ≤0.60
Phosphorus (P): ≤0.025
Sulfur (S): ≤0.025
Microalloying elements: Niobium (Nb), titanium (Ti) or vanadium (V) added for grain refinement and precipitation strengthening.

Production Process and Technical Advantages

HC500LA adopts an advanced thermo-mechanical controlled processing (TMCP) route. Precise control of microalloying elements achieves dual effects of grain refinement strengthening and precipitation strengthening.
Excellent cold formability: Despite a high yield strength of 500MPa, its elongation remains above 14%, adapting to complex bending and stamping processes with controllable springback.
Outstanding weldability: Low carbon equivalent design results in extremely low crack sensitivity in arc welding, laser welding and other processes, suitable for high-strength joining of automotive body-in-white.
Diversified surface treatments: Available in pickled (scale removed, smooth surface), cold-rolled (precise thickness), hot-dip galvanized (GI) and electro-galvanized surface conditions to meet different anti-corrosion requirements.

Main Application Fields

HC500LA is an ideal material for automotive structural components, especially for parts with high demands on strength and energy absorption:
1.Body safety structures: Widely used in A/B/C pillar reinforcements, door anti-collision beams and roof reinforcements, effectively improving side impact and rollover protection.
2.Chassis system: Used for manufacturing subframes, suspension arms, longitudinal beams and cross beams to withstand complex alternating loads during driving.
3.Seat system: Seat slide rails and frames, requiring the material to bear huge inertial forces even at an extremely thin thickness.
4.New energy vehicle special applications: Battery pack trays, motor brackets and other components, protecting the core three-electric systems by virtue of its high strength.

Frequently Asked Questions

Q: What is the main difference between HC500LA and HC420LA?
A: The main difference lies in strength grade. HC500LA has a higher yield strength (≥500MPa) than HC420LA (≥420MPa), suitable for structural parts under greater stress and higher safety requirements.
Q: Is HC500LA suitable for hot forming?
A: HC500LA is mainly designed for cold forming. Although it can undergo hot working at a certain temperature, it is not a press-hardening steel (PHS) of the boron steel series and normally does not need to be heated above 900℃ for austenitization.
Q: Is this material prone to rust? How to prevent rust?
A: Hot-rolled or pickled materials have no coating on the surface and will rust in a short time. For long-term rust prevention, it is recommended to choose hot-dip galvanized (HC500LA+Z) or electro-galvanized versions, or apply coating treatment before use.
