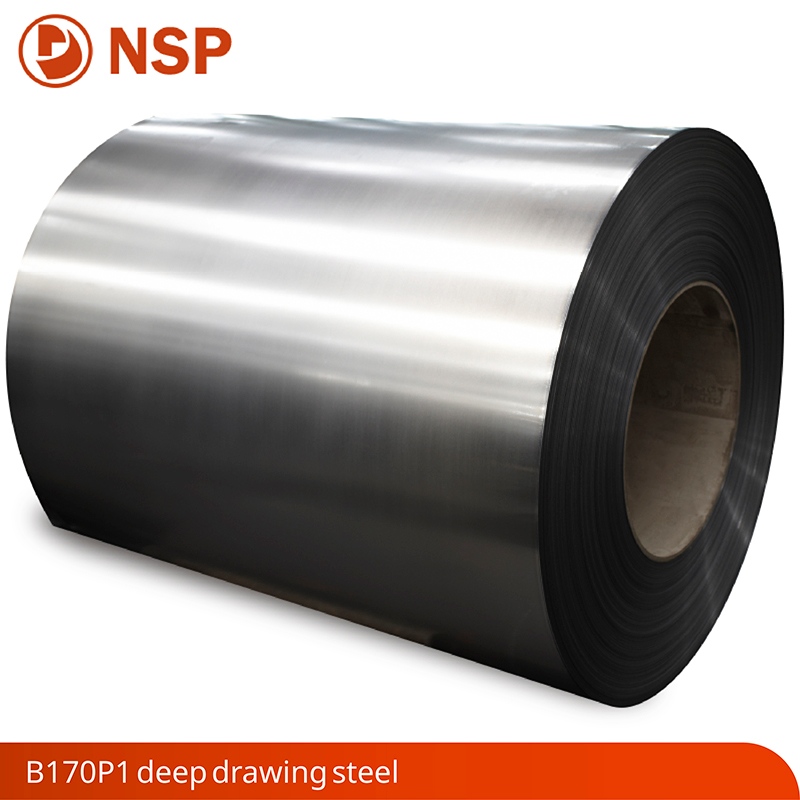

B170P1 deep drawing steel

Our B170P1 deep drawing steel differs significantly from competitors' products, offering substantial advantages:
Material Classification: Interstitial (IF) high-strength steel, ultra-low carbon with phosphorus reinforcement
Standard Compatibility: Baosteel Q/BQB 419-2021 / BXCR014-2020
Mechanical Properties: Yield strength 170-260MPa | Tensile strength ≥340MPa | Elongation ≥38%
Typical Applications: Complex automotive stamping parts, interior and exterior body panels, structural reinforcements

Technical Specifications and Material Analysis

B170P1 deep drawing steel is a deep-drawing grade phosphorus-containing high-strength ultra-low carbon killed steel. As a typical IF steel (interstitial steel), it is strengthened by adding phosphorus. Phosphorus's strengthening capacity is approximately 7 times that of silicon and 10 times that of manganese; therefore, only a small amount is needed to significantly improve strength, while avoiding the decrease in plasticity caused by large amounts of silicon and manganese. The ultra-low carbon content (≤0.006%) ensures its excellent deep-drawing performance and resistance to aging.

Chemical composition (smelting analysis %)

FAQ

Q1: What is the difference between B170P1 and ordinary DC01 deep drawing steel?
A: B170P1 deep drawing steel is a phosphorus-added high-strength IF steel. Its yield strength (170-260MPa) is significantly higher than that of ordinary DC01 (140-280MPa, but usually lower). B170P1 deep drawing steel also has bake-hardening properties, resulting in higher strength after forming, making it more suitable for automotive structural safety components.

Q2: What is the supply status of B170P1 deep drawing steel?
A: Usually in a cold-rolled, annealed, and flattened state, with a surface oil coating for rust prevention. We can also provide pickled coils or cut to length according to requirements.

Q3: Is an original manufacturer's material certificate provided?
A: Yes, each batch of goods is accompanied by an original manufacturer's warranty certificate, containing measured data on chemical composition and mechanical properties, conforming to Q/BQB 419 standards.

Q4: Is B170P1 deep drawing steel suitable for laser welding?
A: Yes. B170P1 has good weldability, but care should be taken to control the heat input, as excessive welding power may affect the plasticity and toughness of the heat-affected zone.

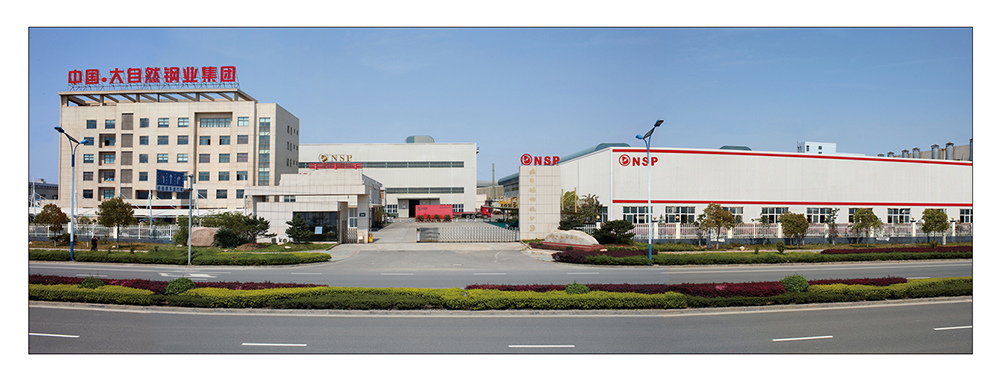

Production Base Strength Introduction

Nature Steel boasts a modern special steel production base, focusing on the research, smelting, and precision rolling of advanced high-strength steels such as AHSS, TRIP transformation-induced plasticity steel, duplex steel, and automotive structural steel. With ample stock and stable delivery times for bulk orders, we provide a stable supply to automotive parts, construction machinery, and new energy equipment companies year-round. Our products are certified by IATF 16949, ISO 9001, CE, and RoHS, meeting the stringent entry requirements of domestic and international OEMs and Tier 1 suppliers.
