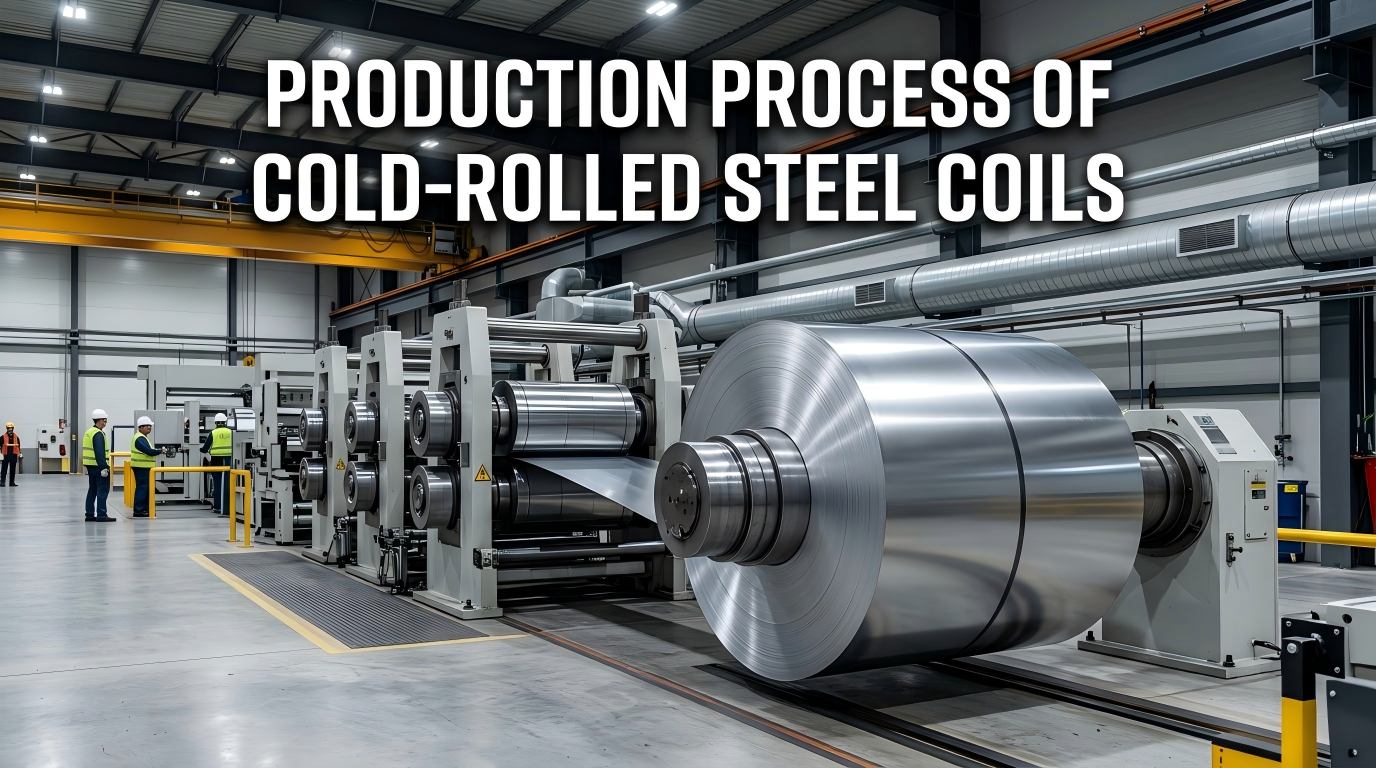

Production Process of Cold-Rolled Steel Coils

Compared with hot-rolled steel coils featuring a simple production process, cold-rolled steel coils involve a more elaborate and complex production process with multiple procedures under strict control and interlocking with each other, which directly determines the steel’s superior surface quality, dimensional accuracy and mechanical properties. Based on Nature Steel’s over 20 years of experience in steel sheet deep processing, the core standardized production process of cold-rolled steel coils can be simplified into four key procedures:

Pickling Pretreatment

Cold rolling production takes high-quality hot-rolled steel coils as the base material, and the first procedure is pickling. The hot-rolled base material is immersed in professional pickling equipment to completely remove oxide scale, rust, impurities and oil stains formed on the steel surface during high-temperature rolling. Equipped with advanced five-stage pickling and electrolytic degreasing production lines, Nature Steel can clean the steel substrate in an all-round way, eliminate quality defects such as pitting, peeling and oxidative blackening from the source, and lay a clean and flat base material foundation for subsequent precision rolling.

Precision Cold Rolling at Room Temperature

After pickling and cleaning, the steel coils are fed into high-precision rolling mills at room temperature and continuously extruded and shaped by multiple sets of rolls, which can precisely reduce the steel thickness by 40%–90%. The room-temperature cold deformation process not only effectively avoids high-temperature oxidation, but also improves the overall strength and density of the steel through work hardening, greatly optimizing the surface finish and flatness. Relying on Siemens and ABB intelligent numerical control systems as well as six-high reversible rolling mills, the brand achieves high-speed and stable rolling to ensure uniform and consistent dimensions of the entire steel coil.

Annealing in Protective Atmosphere

After cold rolling, the steel will suffer from increased hardness, reduced toughness and brittle texture due to cold work hardening, making it unfit for direct deep processing. Therefore, the steel needs to be heated at a constant temperature of 650–750℃ in a controllable protective atmosphere mixed with hydrogen and nitrogen for annealing. This promotes the recrystallization of the internal microstructure of the steel, effectively eliminates processing stress, and fully restores the steel’s ductility, bendability and deep drawability. The manufacturer can flexibly adopt continuous annealing lines (CAL) or batch annealing furnaces (BA) according to product applications to precisely meet different performance requirements.

Skin Pass Rolling for Conditioning

As a key finishing procedure for finished products, a mild and precise conditioning rolling process is adopted to finely adjust the surface flatness of the steel sheet, correct minor dimensional deviations, eliminate residual stress, and further improve the surface finish and texture. The cold-rolled steel coils processed through this procedure feature a flat and flawless surface and uniform standard dimensions, and can be directly applied to various downstream production scenarios such as stamping, welding and deep processing without secondary grinding.
